Optimizing Layout Hierarchies

This lesson teaches you to

  1. Inspect Your Layout
  2. Revise Your Layout
  3. Use Lint

You should also read

It is a common misconception that using the basic layout structures leads to the most efficient layouts. However, each widget and layout you add to your application requires initialization, layout, and drawing. For example, using nested instances of LinearLayout can lead to an excessively deep view hierarchy. Furthermore, nesting several instances of LinearLayout that use the layout_weight parameter can be especially expensive as each child needs to be measured twice. This is particularly important when the layout is inflated repeatedly, such as when used in a ListView or GridView.

In this lesson you'll learn to use Hierarchy Viewer and Layoutopt to examine and optimize your layout.

Inspect Your Layout

The Android SDK tools include a tool called Hierarchy Viewer that allows you to analyze your layout while your application is running. Using this tool helps you discover bottlenecks in the layout performance.

Hierarchy Viewer works by allowing you to select running processes on a connected device or emulator, then display the layout tree. The traffic lights on each block represent its Measure, Layout and Draw performance, helping you identify potential issues.

For example, figure 1 shows a layout that's used as an item in a ListView. This layout shows a small bitmap image on the left and two stacked items of text on the right. It is especially important that layouts that will be inflated multiple times—such as this one—are optimized as the performance benefits will be multiplied.

Figure 1. Conceptual layout for an item in a ListView.

The hierarchyviewer tool is available in <sdk>/tools/. When opened, the Hierarchy Viewer shows a list of available devices and its running components. Click Load View Hierarchy to view the layout hierarchy of the selected component. For example, figure 2 shows the layout for the list item illustrated by figure 1.

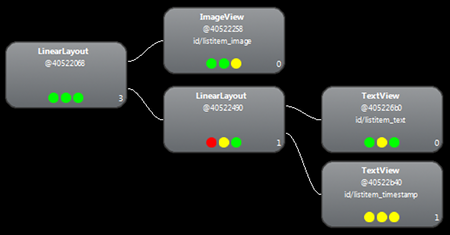

Figure 2. Layout hierarchy for the layout in figure 1, using nested instances of LinearLayout.

Figure 3. Clicking a hierarchy node shows its performance times.

In figure 2, you can see there is a 3-level hierarchy with some problems laying out the text items. Clicking on the items shows the time taken for each stage of the process (figure 3). It becomes clear which items are taking the longest to measure, layout, and render, and where you should spend time optimizing.

The timings for rendering a complete list item using this layout are:

  • Measure: 0.977ms
  • Layout: 0.167ms
  • Draw: 2.717ms

Revise Your Layout

Because the layout performance above slows down due to a nested LinearLayout, the performance might improve by flattening the layout—make the layout shallow and wide, rather than narrow and deep. A RelativeLayout as the root node allows for such layouts. So, when this design is converted to use RelativeLayout, you can see that the layout becomes a 2-level hierarchy. Inspection of the new layout looks like this:

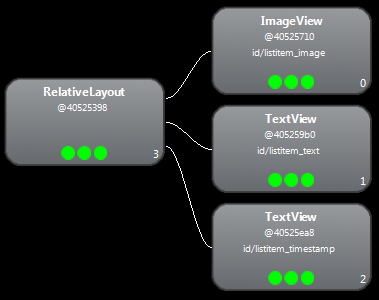

Figure 4. Layout hierarchy for the layout in figure 1, using RelativeLayout.

Now rendering a list item takes:

  • Measure: 0.598ms
  • Layout: 0.110ms
  • Draw: 2.146ms

Might seem like a small improvement, but this time is multiplied several times because this layout is used for every item in a list.

Most of this time difference is due to the use of layout_weight in the LinearLayout design, which can slow down the speed of measurement. It is just one example of how each layout has appropriate uses and you should carefully consider whether using layout weight is necessary.

Use Lint

It is always good practice to run the lint tool on your layout files to search for possible view hierarchy optimizations. Lint has replaced the Layoutopt tool and has much greater functionality. Some examples of lint rules are:

  • Use compound drawables - A LinearLayout which contains an ImageView and a TextView can be more efficiently handled as a compound drawable.
  • Merge root frame - If a FrameLayout is the root of a layout and does not provide background or padding etc, it can be replaced with a merge tag which is slightly more efficient.
  • Useless leaf - A layout that has no children or no background can often be removed (since it is invisible) for a flatter and more efficient layout hierarchy.
  • Useless parent - A layout with children that has no siblings, is not a ScrollView or a root layout, and does not have a background, can be removed and have its children moved directly into the parent for a flatter and more efficient layout hierarchy.
  • Deep layouts - Layouts with too much nesting are bad for performance. Consider using flatter layouts such as RelativeLayout or GridLayout to improve performance. The default maximum depth is 10.

Another benefit of Lint is that it is integrated into Android Studio. Lint automatically runs whenever you compile your program. With Android Studio, you can also run lint inspections for a specific build variant, or for all build variants.

You can also manage inspection profiles and configure inspections within Android Studio with the File>Settings>Project Settings option. The Inspection Configuration page appears with the supported inspections.

Figure 5. Inspection Configuration

Lint has the ability to automatically fix some issues, provide suggestions for others and jump directly to the offending code for review.
